Selector issue with AR build

Discussion of rifles, shotguns, and muzzleloaders

Selector issue with AR build

Postby purd0027 on Thu Jul 11, 2019 8:56 pm

I am trying to build a lower and am encountering issues with the selector. It doesn't seem to want to click to engage safety or click to select fire, just kinda swings loose. Detent is installed with pointy end first and I don't think I kinked the spring. Tried two different selectors, AR Stoner and Aero Precision, got a similar result with each. Lower is an Anderson Mfg. Is it possible that the detent hole is out of spec? I tried to pass a #22 drill bit through the hole (installation book said the holes should be cleaned by hand twisting with this size bit). Does this mean the lower is out of spec? Thanks in advance
purd0027

Posts: 55 [View]
Joined: Tue Oct 04, 2011 10:19 am

Selector issue with AR build

Postby gun_fan111v2 on Thu Jul 11, 2019 9:40 pm

If you install the detent without the safety (selector), do you see it sticking out of the hole?
User avatar
gun_fan111v2

Posts: 836 [View]
Joined: Thu Feb 19, 2015 9:31 pm

Re: Selector issue with AR build

Postby photogpat on Fri Jul 12, 2019 3:41 pm

Are you using the correct spring?
Nothing to see here. Continue swimming.
User avatar
photogpat

Posts: 3651 [View]
Joined: Sun Jun 06, 2010 1:01 pm
Location: Securely barricaded

Re: Selector issue with AR build

Postby Ghost on Fri Jul 12, 2019 5:04 pm

What grip are you using?

Not my pic
User avatar
Ghost

Posts: 7516 [View]
Joined: Wed Feb 05, 2014 8:49 pm

Re: Selector issue with AR build

Postby Rip Van Winkle on Fri Jul 12, 2019 6:04 pm

purd0027 wrote:Is it possible that the detent hole is out of spec? I tried to pass a #22 drill bit through the hole (installation book said the holes should be cleaned by hand twisting with this size bit). Does this mean the lower is out of spec? Thanks in advance

Did the drill bit go through? The way you wrote this it sounds like it didn't. (it should)
I will never apologize for being an American.
Post 435 Gun Club
North Star Rifle Club
cmpofficer@post435gunclub.org
48 down, Still in the hunt for a heavy!
President's Hundred (#48 2018)
Certified NRA RSO
User avatar
Rip Van Winkle

Posts: 2985 [View]
Joined: Thu Jul 26, 2007 5:04 pm
Location: Unfashionable end of the western spiral arm, Galaxy Milky Way

Re: Selector issue with AR build

Postby Rip Van Winkle on Sun Jul 14, 2019 2:00 pm

Looks like our new friend decided not to come back.

I hope he fixed his problem.
I will never apologize for being an American.
Post 435 Gun Club
North Star Rifle Club
cmpofficer@post435gunclub.org
48 down, Still in the hunt for a heavy!
President's Hundred (#48 2018)
Certified NRA RSO
User avatar
Rip Van Winkle

Posts: 2985 [View]
Joined: Thu Jul 26, 2007 5:04 pm
Location: Unfashionable end of the western spiral arm, Galaxy Milky Way

Re: Selector issue with AR build

Postby Ghost on Sun Jul 14, 2019 5:07 pm

Rip Van Winkle wrote:Looks like our new friend decided not to come back.

I hope he fixed his problem.

Operator error?
User avatar
Ghost

Posts: 7516 [View]
Joined: Wed Feb 05, 2014 8:49 pm

Re: Selector issue with AR build

Postby purd0027 on Sun Jul 14, 2019 7:04 pm

Sorry all, I'm having trouble uploading an image and having trouble generally posting :( Hope this goes through. I am using an a Magpul K2+ grip. The conical part of the detent sticks through, but not the cylindrical portion. I am pretty certain is the right spring. The drill bit does not go through - sorry it wasn't clear.
purd0027

Posts: 55 [View]
Joined: Tue Oct 04, 2011 10:19 am

Re: Selector issue with AR build

Postby purd0027 on Sun Jul 14, 2019 7:30 pm

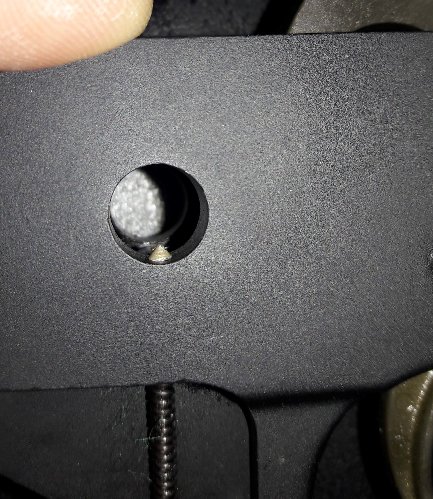

Trying to reduce file size . . .
Attachments
purd0027

Posts: 55 [View]
Joined: Tue Oct 04, 2011 10:19 am

Re: Selector issue with AR build

Postby Ghost on Sun Jul 14, 2019 7:42 pm

purd0027 wrote:Trying to reduce file size . . .

I’ve never paid any attention to this particular depth but that seems like it should work. Have you tried the selector while holding the detent and spring in as far as you can?
User avatar
Ghost

Posts: 7516 [View]
Joined: Wed Feb 05, 2014 8:49 pm

Re: Selector issue with AR build

Postby purd0027 on Sun Jul 14, 2019 9:01 pm

Yeah I tried pressing in the spring and detent, no luck.
purd0027

Posts: 55 [View]
Joined: Tue Oct 04, 2011 10:19 am

Re: Selector issue with AR build

Postby Rip Van Winkle on Mon Jul 15, 2019 4:41 am

The detent isn't sticking through the hole enough, there must be a burr or something in the hole.
I will never apologize for being an American.
Post 435 Gun Club
North Star Rifle Club
cmpofficer@post435gunclub.org
48 down, Still in the hunt for a heavy!
President's Hundred (#48 2018)
Certified NRA RSO
User avatar
Rip Van Winkle

Posts: 2985 [View]
Joined: Thu Jul 26, 2007 5:04 pm
Location: Unfashionable end of the western spiral arm, Galaxy Milky Way

Re: Selector issue with AR build

Postby Rip Van Winkle on Mon Jul 15, 2019 5:11 am

The channel in the sector is cut fairly deep. I don't think your detent is engaging it properly.

I will never apologize for being an American.
Post 435 Gun Club
North Star Rifle Club
cmpofficer@post435gunclub.org
48 down, Still in the hunt for a heavy!
President's Hundred (#48 2018)
Certified NRA RSO
User avatar
Rip Van Winkle

Posts: 2985 [View]
Joined: Thu Jul 26, 2007 5:04 pm
Location: Unfashionable end of the western spiral arm, Galaxy Milky Way

Re: Selector issue with AR build

Postby purd0027 on Mon Jul 15, 2019 11:34 am

Rip Van Winkle wrote:The detent isn't sticking through the hole enough, there must be a burr or something in the hole.


Thanks all, I'll see if Anderson wants me to send it back or if they tell me to try to break out the drill. . .
purd0027

Posts: 55 [View]
Joined: Tue Oct 04, 2011 10:19 am
